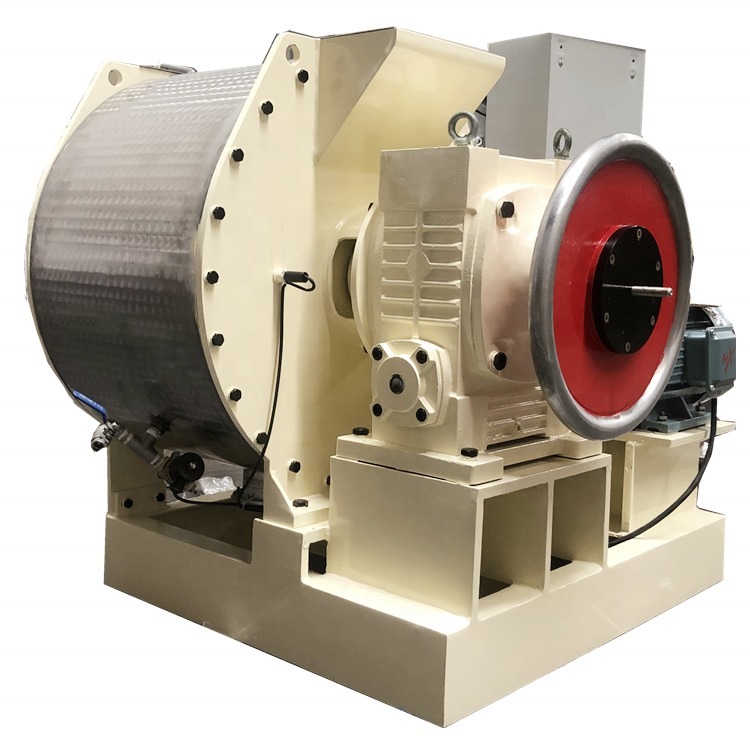

100L Chocolate Conche Refiner 5.5kW 380V for Chocolate Production

MOQ:	1
قیمت:	$5,600

Detail Information

Product Description

Detail Information

محل منبع:

جیانگسو ، چین

گواهی:

ISO CE

ولتاژ:

380 ولت 50 هرتز 3 فاز یا سفارشی

قدرت:

5.5 کیلو وات

بعد:

1200*1150*1050 میلی متر

وزن:

1050 کیلوگرم

ظرفیت:

100 لیتر

مادی:

فولاد کربن یا استیل ضد زنگ

زمان سنگ زنی:

ساعت 8-10

ریزه کاری:

20 ~ 25micron

سرعت محور اصلی:

48 دور در دقیقه

قدرت حرکتی اصلی:

5.5 کیلو وات

قدرت گرمایش الکتریکی:

2.5 کیلو وات

ماده تیغه:

فولاد منگنز

اندازه دسته:

100 کیلوگرم / دسته

کنترل دما:

خودکار

ماده نوار روکش:

فولاد منگنز

برجسته کردن:

100L chocolate conche refiner,5.5kW chocolate conche machine,380V chocolate production equipment

5.5kW chocolate conche machine

380V chocolate production equipment

Product Description

Universal Chocolate Conche Refiner Melanger Conche (20L, 40L, 100L, 500L)

Product Description

Application:

Ideal production solution for chocolate shops and labs with three functions: raw material mixing, chocolate mass grinding & refining, and conching
Suitable for making chocolate mass and various fillings for chocolate products

Technical Parameters

Model/Project	20L	100L	500L	1000L	1500L	2000L	3000L
Maximum capacity (L)	20	100	500	1000	1500	2000	3000
Grinding Fineness (micron)	20-25	20-25	20-25	20-25	20-25	20-25	20-25
Main Axle Rotating Speed (rpm)	93	48	33	35	35	35	35
Grinding time (h)	8-10	12-16	16-22	16-22	16-22	16-22	16-22
Main motor power (kw)	1.5	5.5	15	22	30	37	45
Electrical heating power (kw)	0.6	2.5	5	2×2	6	3×2	12
Weight (kg)	295	1050	2572	3050	4850	5350	7500
Outside dimensions (mm)	920×600×1110	1200×1150×1050	2465×1146×1312	2627×1280×1520	2918×1650×1920	3040×1912×1920	3450×2016×2280

Product Images

Detail Images

Key Features

Manganese steel blades and lining bars with extended lifespan, processed and strengthened by special heating system
Operator-friendly design:
- 100kg batch capacity for easy raw material loading
- Equipped with solenoid valve and automatic temperature control system
Compact 20L model ideal for limited space requirements

Processing Images

Workshop

Our 100L chocolate conche refiner is highly popular among chocolate shops and labs. We maintain a production capacity of 50 units per month. With in-house manufacturing of nearly all components (except motors and electrical parts), we ensure strict quality control throughout the production process.

Company Profile

Suzhou Harmo Food Machinery, based in Suzhou, China, is a professional chocolate machine manufacturer with complete production facilities. We maintain control over quality from raw materials to finished products by manufacturing nearly all components in-house (excluding motors and electrical parts).

Our chocolate machines are exported worldwide, including to USA, Canada, South America, Middle East, North Africa, Eastern Europe, and Asia. Our extensive manufacturing experience allows us to provide optimal chocolate equipment and production processes for global customers.

Quality is our core value, and service is our principle. We prioritize quality over price and strive to respond promptly to all customer inquiries. Our mission is to learn from customers, work with customers, and provide reliable chocolate equipment with proper production solutions.

Certifications

Product Packaging

Frequently Asked Questions

Q1: Can you provide invitation letter for customers and arrange pick-up at the airport if they want to visit your factory?

A1: Yes. We can provide invitation letter and arrange our driver or sales to pick up customers at Shanghai airport or train station.

Q2: What is your warranty period?

A2: Our warranty is 12 months or 14 months after shipment.

Q3: Will you test the machine after manufacturing?

A3: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.

Q4: Can you supply machines which conform to European Standard or American standard?

A4: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.

Q5: What can we do if goods were damaged during shipping?

A5: Firstly, We will pack goods and fix them well in our factory. Secondly, If goods were damaged during sea shipping, we will deliver parts to you try our best. So you can replace damaged parts and run machines ASAP.

Q6: Can you arrange loading in your factory if customer bought products from different suppliers?

A6: Yes,we can load all products in our factory and ship all goods by one or two containers.

Q7: Do you provide installation and commissioning service?

A7: Yes, we can deliver our technician to do installation and commissioning in customers' factory. After installation, our technician will provide training for stuff in the factory.

Q8: Do you provide recipe if customer buys whole production line?

A8: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.

Q9: Do you provide instruction manual and maintenance schedule?

A9: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.

Q10: Can you make customized machine?

A10: Yes, we can customize the machine according to the final product. Also we can provide turnkey project for our customers.
